MD W.Rokkor 17mm 1:4 Focal length 17mm Speed 1:4 Minimum focus distance 0.25m Optical design (elements/groups) 11/9 Filter thread size 72mm Weight 330g Introduced 1977 Picture gallery 1020

MD W.Rokkor 20mm 1:2.8 Focal length 20mm Speed 1:2.8 Minimum focus distance 0.25m Optical design (elements/groups) 10/9 Filter thread size 55mm Weight 240g Introduced 1977 Picture gallery 1040

MC W.Rokkor 24mm 1:2.8 Focal length 24mm Speed 1:2.8 Minimum focus distance 0.3m Optical design (elements/groups) 9/7 Filter thread size 55mm Weight 275g Introduced 1973 Picture gallery 1060

MD W.Rokkor 24mm 1:2.8 Focal length 24mm Speed 1:2.8 Minimum focus distance 0.3m Optical design (elements/groups) 9/7 Filter thread size 55mm Weight 215g Introduced 1978 Picture gallery 1080

MD 24mm 1:2.8 Focal length 24mm Speed 1:2.8 Minimum focus distance 0.25m Optical design (elements/groups) 8/8 Filter thread size 49mm Weight 200g Introduced 1981 Picture gallery 1100

MD Zoom 24-35mm 1:3.5 Focal length 24-35mm Speed 1:3.5 Minimum focus distance 0.3m Optical design (elements/groups) 10/10 Filter thread size 55mm Weight 285g Introduced 1981 Picture gallery 1120

MD Zoom Rokkor 24-50mm 1:4 Focal length 24-50mm Speed 1:4 Minimum focus distance 0.7m Optical design (elements/groups) 13/11 Filter thread size 55mm Weight 395g Introduced 1978 Picture gallery 1140

MD Zoom 28-85mm 1:3.5-4.5 Focal length 28- 85mm Speed 1:3.5-4.5 Minimum focus distance 0.8m Optical design (elements/groups) 13/10 Filter thread size 55mm Weight 470g Introduced 1983 Picture gallery 1160

MC W.Rokkor-HH 35mm 1:1.8 Focal length 35mm Speed 1:1.8 Minimum focus distance 0.3m Optical design (elements/groups) 8/6 Filter thread size 55mm Weight 415g Introduced 1973 Picture gallery 1180

MD W.Rokkor 35mm 1:1.8 Focal length 35mm Speed 1:1.8 Minimum focus distance 0.3m Optical design (elements/groups) 8/6 Filter thread size 49mm Weight 235g Introduced 1978 Picture gallery 1200

MD 35mm 1:1.8 Focal length 35mm Speed 1:1.8 Minimum focus distance 0.3m Optical design (elements/groups) 8/6 Filter thread size 49mm Weight 240g Introduced 1981 Picture gallery 1220

MC W.Rokkor-HG 35mm 1:2.8 Focal length 35mm Speed 1:2.8 Minimum focus distance 0.4m Optical design (elements/groups) 7/6 Filter thread size 55mm Weight 210g Introduced 1966 Picture gallery 1240

MC W.Rokkor-HG 35mm 1:2.8 Focal length 35mm Speed 1:2.8 Minimum focus distance 0.4m Optical design (elements/groups) 7/6 Filter thread size 55mm Weight 240g Introduced 1973 Picture gallery 1260

MC W.Rokkor-HG 35mm 1:2.8 Focal length 35mm Speed 1:2.8 Minimum focus distance 0.4m Optical design (elements/groups) 7/6 Filter thread size 55mm Weight 240g Introduced 1973 Picture gallery 1280

MC Celtic 35mm 1:2.8 Focal length 35mm Speed 1:2.8 Minimum focus distance 0.3m Optical design (elements/groups) 5/5 Filter thread size 55mm Weight 227g Introduced 1975 Picture gallery 1300

MD W.Rokkor 35mm 1:2.8 Focal length 35mm Speed 1:2.8 Minimum focus distance 0.3m Optical design (elements/groups) 5/5 Filter thread size 55mm Weight 205g Introduced 1977 Picture gallery 1320

MD W.Rokkor 35mm 1:2.8 Focal length 35mm Speed 1:2.8 Minimum focus distance 0.3m Optical design (elements/groups) 5/5 Filter thread size 49mm Weight 165g Introduced 1978 Picture gallery 1340

MD 35mm 1:2.8 Focal length 35mm Speed 1:2.8 Minimum focus distance 0.3m Optical design (elements/groups) 5/5 Filter thread size 49mm Weight 170g Introduced 1981 Picture gallery 1360

Shift CA 35mm 1:2.8 Focal length 35mm Speed 1:2.8 Minimum focus distance 0.3m Optical design (elements/groups) 9/7 Filter thread size 55mm Weight 555g Introduced 1982 Picture gallery The one and only Minolta shift lens, here in its plain MD incarnation. 1380

MD Zoom Rokkor 35-70mm 1:3.5 Focal length 35- 70mm Speed 1:3.5 Minimum focus distance 1m Optical design (elements/groups) 8/7 Filter thread size 55mm Weight 395g Introduced 1978 Picture gallery The first version of the standard 35-70mm zoom lens 1400

MD Zoom 35-70mm 1:3.5 Focal length 35- 70mm Speed 1:3.5 Minimum focus distance 1m Optical design (elements/groups) 8/7 Filter thread size 55mm Weight 355g Introduced 198 Picture gallery The early plain MD version without macro setting 1420

MD Zoom 35-70mm 1:3.5 Focal length 35- 70mm Speed 1:3.5 Minimum focus distance 0.8m Optical design (elements/groups) 8/7 Filter thread size 55mm Weight 365g Introduced 1983 Picture gallery The last plain MD and most popular version with macro setting 1440

MD Zoom 35-105mm 1:3.5-4.5 Focal length 35- 105mm Speed 1:3.5-4.5 Minimum focus distance 1.6m Optical design (elements/groups) 16/13 Filter thread size 55mm Weight 480g Introduced 1982 Picture gallery The first model of this standard zoom lens 1460

MD Zoom 35-105mm 1:3.5-4.5 Focal length 35- 105mm Speed 1:3.5-4.5 Minimum focus distance 1.5m Optical design (elements/groups) 14/12 Filter thread size 55mm Weight 430g Introduced 1983 Picture gallery The second model, distinguisheable from the first by its min. focus distance and the macro mode setting limited to 105mm 1480

MD Zoom 35-135mm 1:3.5-4.5 Focal length 35- 135mm Speed 1:3.5-4.5 Minimum focus distance 1.5m Optical design (elements/groups) 14/12 Filter thread size 55mm Weight 510g Introduced 1983 Picture gallery 1500

h

MD Rokkor 45mm 1:2 Focal length 45mm Speed 1:2 Minimum focus distance 0.6m Optical design (elements/groups) 6/5 Filter thread size 49mm Weight 125g Introduced 1978 Picture gallery 1520

MC Rokkor-PG 50mm 1:1.4 Focal length 50mm Speed 1:1.4 Minimum focus distance 0.55m Optical design (elements/groups) 7/5 Filter thread size 55mm Weight 305g Introduced 1973 Picture gallery 1540

MC Rokkor-X PG 50mm 1:1.4 Focal length 50mm Speed 1:1.4 Minimum focus distance 0.55m Optical design (elements/groups) 7/5 Filter thread size 55mm Weight 305g Introduced 1973 Picture gallery 1560

MD Rokkor 50mm 1:1.4 Focal length 50mm Speed 1:1.4 Minimum focus distance 0.45m Optical design (elements/groups) 7/5 Filter thread size 55mm Weight 245g Introduced 1977 Picture gallery 1580

MD Rokkor 50mm 1:1.4 Focal length 50mm Speed 1:1.4 Minimum focus distance 0.45m Optical design (elements/groups) 7/6 Filter thread size 49mm Weight 220g Introduced 1979 Picture gallery 1600

MD 50mm 1:1.4 Focal length 50mm Speed 1:1.4 Minimum focus distance 0.45m Optical design (elements/groups) 7/6 Filter thread size 49mm Weight 235g Introduced 1981 Picture gallery 1620

MC Rokkor-X PF 50mm 1:2 Focal length 50mm Speed 1:2 Minimum focus distance 0.45m Optical design (elements/groups) 6/5 Filter thread size 49mm Weight 150g Introduced 1981 Picture gallery 1640

MD Rokkor 50mm 1:2 Focal length 50mm Speed 1:2 Minimum focus distance 0.45m Optical design (elements/groups) 6/5 Filter thread size 49mm Weight 150g Introduced 1981 Picture gallery 1660

MD 50mm 1:2 Focal length 50mm Speed 1:2 Minimum focus distance 0.45m Optical design (elements/groups) 6/5 Filter thread size 49mm Weight 150g Introduced 1981 Picture gallery 1680

MC Macro Rokkor-QF 50mm 1:3.5 Focal length 50mm Speed 1:3.5 Minimum focus distance 0.23m Optical design (elements/groups) 6/4 Filter thread size 55mm Weight 330g Introduced 1969 Picture gallery 1700

MC Macro Celtic 50mm 1:3.5 Focal length 50mm Speed 1:3.5 Minimum focus distance 0.23m Optical design (elements/groups) 6/4 Filter thread size 55mm Weight 325g Introduced 1973 Picture gallery 1720

MD Macro Rokkor 50mm 1:3.5 Focal length 50mm Speed 1:3.5 Minimum focus distance 0.23m Optical design (elements/groups) 6/4 Filter thread size 55mm Weight 220g Introduced 1977 Picture gallery 1740

MD Macro 50mm 1:3.5 Focal length 50mm Speed 1:3.5 Minimum focus distance 0.23m Optical design (elements/groups) 6/4 Filter thread size 55mm Weight 200g Introduced 1981 Picture gallery 1760

Auto Bellows Macro 50mm 1:3.5 Focal length 50mm Speed 1:3.5 Minimum focus distance - Optical design (elements/groups) 6/4 Filter thread size 34mm & 55mm Weight 115g Introduced 1979 Picture gallery 1780

MD Zoom 50-135mm 1:3.5 Focal length 50- 135mm Speed 1:3.5 Minimum focus distance 1.5m Optical design (elements/groups) 12/10 Filter thread size 55mm Weight 480g Introduced 1978 Picture gallery 1800

MD Zoom 70-210mm 1:4 Focal length 70- 210mm Speed 1:4 Minimum focus distance 1.1m Optical design (elements/groups) 12/9 Filter thread size 55mm Weight 635g Introduced 1983 Picture gallery 1820

MD Zoom Rokkor 75-150mm 1:4 Focal length 75- 150mm Speed 1:4 Minimum focus distance 1.2m Optical design (elements/groups) 12/8 Filter thread size 49mm Weight 445g Introduced 1981 Picture gallery 1840

MD Zoom Rokkor 75-200mm 1:4.5 Focal length 75- 200mm Speed 1:4.5 Minimum focus distance 1.2m Optical design (elements/groups) 15/11 Filter thread size 55mm Weight 630g Introduced 1978 Picture gallery 1860

MD Zoom 75-200mm 1:4.5 Focal length 75- 200mm Speed 1:4.5 Minimum focus distance 1.2m Optical design (elements/groups) 15/11 Filter thread size 55mm Weight 640g Introduced 1981 Picture gallery 1880

MD Zoom Rokkor 80-200mm 1:4.5 Focal length 80- 200mm Speed 1:4.5 Minimum focus distance 1,8m Optical design (elements/groups) 14/10 Filter thread size 55mm Weight 700g Introduced 1977 Picture gallery 1900

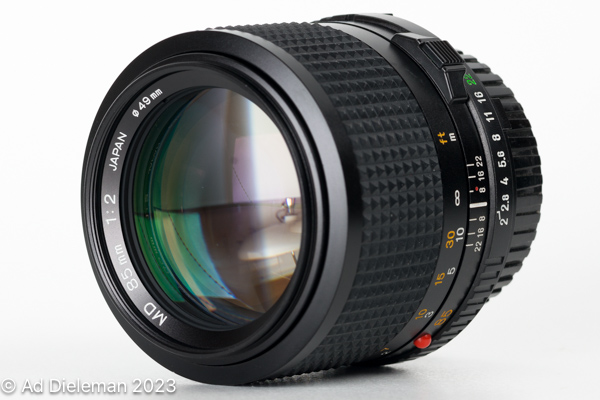

MD Rokkor 85mm 1:2 Focal length 85mm Speed 1:2 Minimum focus distance 0.85m Optical design (elements/groups) 6/5 Filter thread size 49mm Weight 280g Introduced 1979 First version of the 85/2, successor to the 85/1.7 Picture gallery 1920

MD 85mm 1:2 Focal length 85mm Speed 1:2 Minimum focus distance 0.85m Optical design (elements/groups) 6/5 Filter thread size 49mm Weight 285g Introduced 1981 Second and last version of the 85/2 Picture gallery 1940

Varisoft Rokkor 85mm 1:2.8 Focal length 85mm Speed 1:2.8 Minimum focus distance 0.80m Optical design (elements/groups) 6/5 Filter thread size 55mm Weight 430g Introduced 1978 First version of the famous 85mm soft-focus lens; the second and last version only differs in the front ring text. Picture gallery 1945

MC Tele Rokkor-X 100mm 1:2.5 Focal length 100mm Speed 1:2.5 Minimum focus distance 1.2m Optical design (elements/groups) 6/5 Filter thread size 55mm Weight 430g Introduced 1973 Despite the missing -PF designation this still must be the oldest design, judged by its minimum focussing distance. No longer in my possession. Picture gallery 1960

MD Tele Rokkor 100mm 1:2.5 Focal length 100mm Speed 1:2.5 Minimum focus distance 1m Optical design (elements/groups) 5/5 Filter thread size 55mm Weight 375g Introduced 1977 The second MD version Picture gallery 1980

MD 100mm 1:2.5 Focal length 100mm Speed 1:2.5 Minimum focus distance 1m Optical design (elements/groups) 5/5 Filter thread size 49mm Weight 310g Introduced 1981 The latest incarnation of the 100/2.5 with its 2-piece telescopic lens hood Picture gallery 2000

MC Macro Rokkor 100mm 1:3.5 Focal length 100mm Speed 1:3.5 Minimum focus distance 0.45m Optical design (elements/groups) 5/4 Filter thread size 55mm Weight 600g Introduced 1975 This one doesn't have the QE designation and it has a plastic bead instead of the sunken red dot. Picture gallery 2020

MD Macro 100mm 1:4 Focal length 100mm Speed 1:4 Minimum focus distance 0.45m Optical design (elements/groups) 5/4 Filter thread size 55mm Weight 385g Introduced 1981 Significantly lighter and smaller than the previous design. Picture gallery 2040

Auto Bellows Rokkor 100mm 1:4 Focal length 100mm Speed 1:4 Minimum focus distance - Optical design (elements/groups) 3/3 Filter thread size 55mm Weight 165g Introduced 1978 Last version of this optical design. Picture gallery 2060

Auto Bellows Macro Rokkor 100mm 1:4 Focal length 100mm Speed 1:4 Minimum focus distance - Optical design (elements/groups) 5/4 Filter thread size 34mm & 55mm Weight 150g Introduced 1980 The bellows version of the 100/4 macro lens. Picture gallery 2080

Auto Bellows Macro 100mm 1:4 Focal length 100mm Speed 1:4 Minimum focus distance - Optical design (elements/groups) 5/4 Filter thread size 34mm & 55mm Weight 150g Introduced 1981 The bellows version of the 100/4 macro lens without Rokkor designation Picture gallery 2100

MD Zoom Rokkor 100-200mm 1:5.6 Focal length 100- 200mm Speed 1:5.6 Minimum focus distance 2.5m Optical design (elements/groups) 8/5 Filter thread size 55mm Weight 570g Introduced 1978 Picture gallery 2120

MD Zoom Rokkor-X 100-200mm 1:5.6 Focal length 100- 200mm Speed 1:5.6 Minimum focus distance 2.5m Optical design (elements/groups) 8/5 Filter thread size 55mm Weight 570g Introduced 1978 Picture gallery Exactly the same design as the previous lens but for the orange Rokkor-X designation 2140

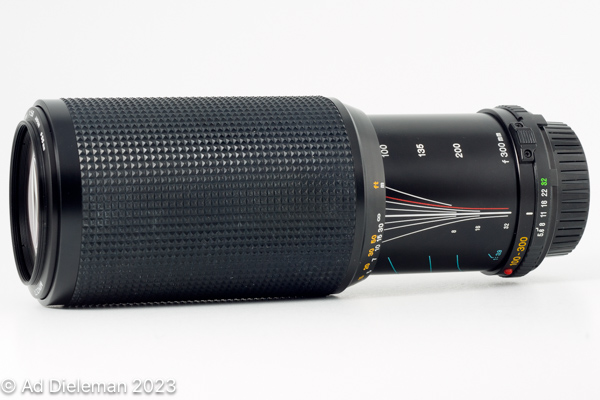

MD Zoom 100-300mm 1:5.6 Focal length 100- 300mm Speed 1:5.6 Minimum focus distance 1.5m Optical design (elements/groups) 13/10 Filter thread size 55mm Weight 700g Introduced 1983 Picture gallery 2160

MC Tele Rokkor-PF 135mm 1:2.8 Focal length 135mm Speed 1:2.8 Minimum focus distance 1.5m Optical design (elements/groups) 6/5 Filter thread size 55mm Weight 518g Introduced 1973 The first version of the MC lens with rubber focus ring Picture gallery 2180

MD Tele Rokkor 135mm 1:2.8 Focal length 135mm Speed 1:2.8 Minimum focus distance 1.5m Optical design (elements/groups) 4/4 Filter thread size 55mm Weight 535g Introduced 1977 First MD version of this lens. Picture gallery 2200

MD Tele Rokkor 135mm 1:2.8 Focal length 135mm Speed 1:2.8 Minimum focus distance 1.5m Optical design (elements/groups) 4/4 Filter thread size 55mm Weight 535g Introduced 1977 Second version, only distinguished from the first by mention of the filter thread size and other text differences on the front lens ring. Picture gallery 2220

MD Tele Rokkor 135mm 1:2.8 Focal length 135mm Speed 1:2.8 Minimum focus distance 1.5m Optical design (elements/groups) 5/5 Filter thread size 55mm Weight 365g Introduced 1979 The third MD version features a new optical design. The tapered exterior is introduced for this model and it's lighter. Picture gallery 2240

MD 135mm 1:2.8 Focal length 135mm Speed 1:2.8 Minimum focus distance 1.5m Optical design (elements/groups) 5/5 Filter thread size 55mm Weight 385g Introduced 1981 The fourth and last version, only differing cosmetically from the previous model. Picture gallery 2260

MC Tele Rokkor-QD 135mm 1:3.5 Focal length 135mm Speed 1:3.5 Minimum focus distance 1.5m Optical design (elements/groups) 4/4 Filter thread size 52mm Weight 370g Introduced 1969 Picture gallery 2280

MD Tele Rokkor 135mm 1:3.5 Focal length 135mm Speed 1:3.5 Minimum focus distance 1.5m Optical design (elements/groups) 4/4 Filter thread size 55mm Weight 420g Introduced 1977 The first MD version of this focal length and speed. Picture gallery 2300

MD Tele Rokkor 135mm 1:3.5 Focal length 135mm Speed 1:3.5 Minimum focus distance 1.5m Optical design (elements/groups) 4/4 Filter thread size 55mm Weight 420g Introduced 1978 The same design as the previous model, only difference is the different front lens ring text, including the filter thread size. Picture gallery 2320

MD Tele Rokkor 135mm 1:3.5 Focal length 135mm Speed 1:3.5 Minimum focus distance 1.5m Optical design (elements/groups) 5/5 Filter thread size 49mm Weight 265g Introduced 1979 Picture gallery 2340

MD 135mm 1:3.5 Focal length 135mm Speed 1:3.5 Minimum focus distance 1.5m Optical design (elements/groups) 5/5 Filter thread size 49mm Weight 285g Introduced 1981 Picture gallery 2360

Rokkor-TC 135mm 1:4 Focal length 135mm Speed 1:4 Minimum focus distance 1.5m Optical design (elements/groups) 3/3 Filter thread size 46mm Weight 375g Introduced 1960 Picture gallery 2380

Rokkor-TC 135mm 1:4 Focal length 135mm Speed 1:4 Minimum focus distance - Optical design (elements/groups) 3/3 Filter thread size 46mm Weight 200g Introduced 1961 The same optical design as the previous model, offered as a bellows head version without focusing helicoid and an M39 lens mount, augmented with the L-adapter to enable using it on a Minolta camera with SR-mount Picture gallery 2400

MD Tele Rokkor 200mm 1:2.8 Focal length 200mm Speed 1:2.8 Minimum focus distance 1.8m Optical design (elements/groups) 5/5 Filter thread size 72mm Weight 700g Introduced 1979 Picture gallery The first fast 200mm from Minolta, still with old styling details like the dot instead of the diamond indicator for aperture and distance. 2420

MC Tele Rokkor-QF 200mm 1:3.5 Focal length 200mm Speed 1:3.5 Minimum focus distance 2.5m Optical design (elements/groups) 6/4 Filter thread size 62mm Weight 775g Introduced 1974 Picture gallery The last MC version with the rubber-clad focussing ring 2440

MD Tele Rokkor 200mm 1:4 Focal length 200mm Speed 1:4 Minimum focus distance 2.5m Optical design (elements/groups) 5/5 Filter thread size 55mm Weight 520g Introduced 1977 Picture gallery The first MD version, the distance/aperture marker is a dot instead of the diamond that was used in later models 2460

MD Tele Rokkor 200mm 1:4 Focal length 200mm Speed 1:4 Minimum focus distance 2.5m Optical design (elements/groups) 5/5 Filter thread size 55mm Weight 400g Introduced 1980 The third MD version, smaller and lighter than the former two Picture gallery 2480

MD 200mm 1:4 Focal length 200mm Speed 1:4 Minimum focus distance 2.5m Optical design (elements/groups) 5/5 Filter thread size 55mm Weight 410g Introduced 1981 Picture gallery The fourth and last MD model, same optical design as the previous Tele Rokkor version 2500

MC Tele Rokkor-PE 200mm 1:4.5 Focal length 200mm Speed 1:4.5 Minimum focus distance 2.5m Optical design (elements/groups) 5/5 Filter thread size 52mm Weight 500g Introduced 1967 Picture gallery 2520

Tele Rokkor-QE 200mm 1:5 Focal length 200mm Speed 1:5 Minimum focus distance 2.5m Optical design (elements/groups) 5/4 Filter thread size 52mm Weight 430g Introduced 1964 Picture gallery 2540

RF Rokkor 250mm 1:5.6 Focal length 250mm Speed 1:5.6 Minimum focus distance 2.5m Optical design (elements/groups) 6/5 Filter thread size 39/62mm Weight 250g Introduced 1979 Picture gallery 2560

MC Tele Rokkor 300mm 1:4.5 Focal length 300mm Speed 1:4.5 Minimum focus distance 4.5m Optical design (elements/groups) 6/6 Filter thread size 72mm Weight 1155g Introduced 1973 Picture gallery 2580

MD 300mm 1:4.5 Focal length 300mm Speed 1:4.5 Minimum focus distance 3m Optical design (elements/groups) 7/6 Filter thread size 72mm Weight 705g Introduced 1981 Picture gallery 2600

MD Tele Rokkor 300mm 1:5.6 Focal length 300mm Speed 1:5.6 Minimum focus distance 4.5m Optical design (elements/groups) 5/5 Filter thread size 55mm Weight 695g Introduced 1978 Picture gallery 2620

RF Rokkor 500mm 1:8 Focal length 500mm Speed 1:8 Minimum focus distance 4m Optical design (elements/groups) 6/5 Filter thread size 39/77mm Weight 635g Introduced 1978 Picture gallery 2640

MD 2x Tele Converter 300-L Magnification 2 Optical design (elements/groups) 5/3 Weight 240g Introduced 1981 Picture gallery 2660

MD 2x Tele Converter 300-S Magnification 2 Optical design (elements/groups) 7/6 Weight 210g Introduced 1981 Picture gallery 2680

Lens/Monocular Converter Magnification f/5mm Optical design (elements/groups) 4/3 Weight 106g Introduced 1979 Picture gallery Eyepiece to convert a Minolta SR lens into a monocular telescope 2700
